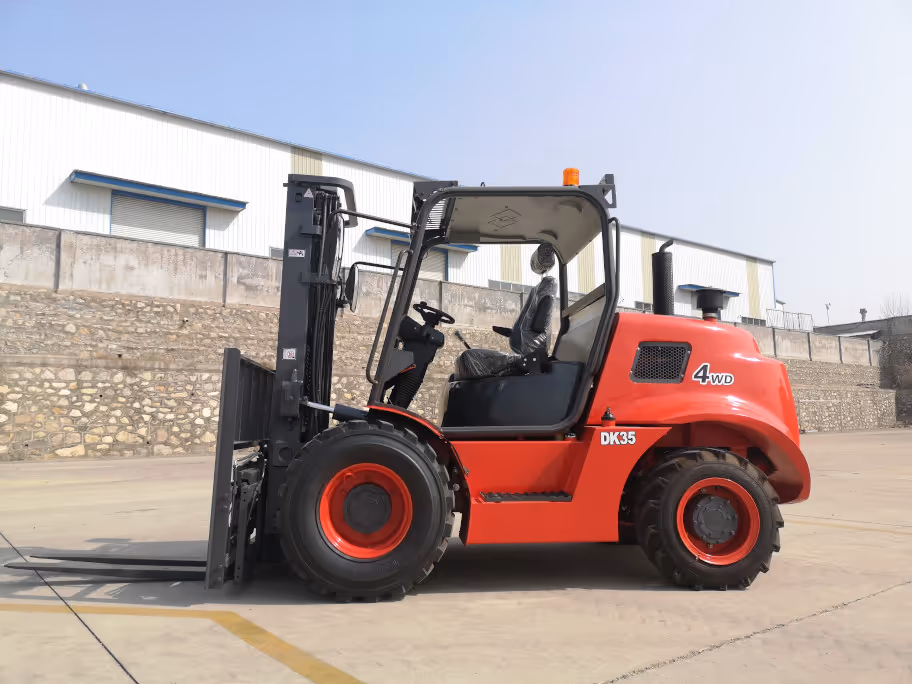

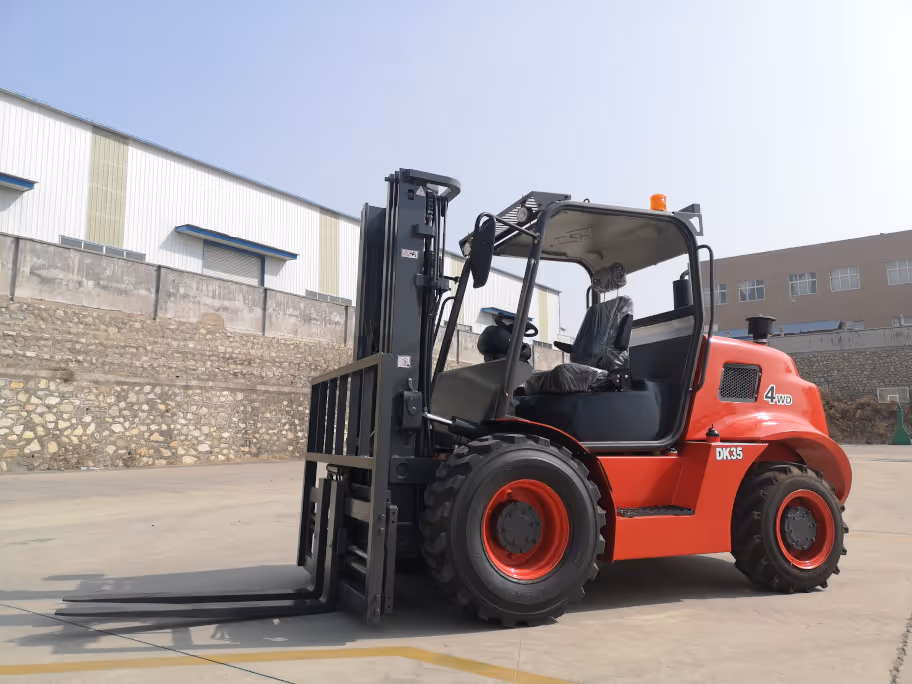

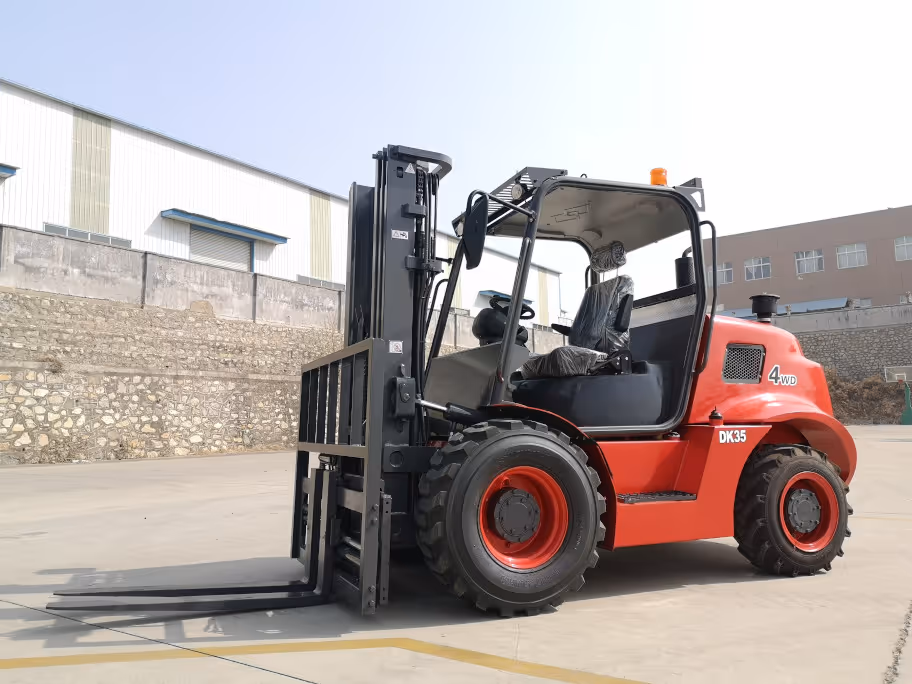

DK35 Forklift

3.5 Ton 4x4 All Terrain Forklift

Dimensions
Standard Lift Height
3 000mm
Fork Size (L*W*H)
1 220x125x45mm
Mast Inclination Angle (F/R)
12/12°
Overall Length (without fork)
3 300mm
Overall Width
1 760mm
Mast Height
2 305mm
Head Guard Height
2 380mm
Min Ground Clearance
280mm
Max Turn Radius
3 500mm
Wheel Base
1 850mm
Front Wheel Tread
1 330mm
Rear Wheel Tread
1 400mm
Operating Weight
5 550kg
Performance
Traveling Speed
30 km/h
Lifting Speed
400 mm/s
Lowering Speed
420 mm/s
Maximum Gradeablity
≥35%
Tyre
Front Tyre Size
14-17.5
Rear Tyre Size
10-16.5
Engine and Gearbox
Power Type
4cyl Diesel
Rated Capacity
3.5 Ton
Load Center Distance
500mm
Drive Type
4WD
Battery
24/120 V/Ah
Engine Model
YN4A055-30CR
Rater Power / RPM
40kW / 2 400rpm
Fuel Tank Capacity
100 L
Gearbox Model
265
Transmission Type
Hydrodynamic
