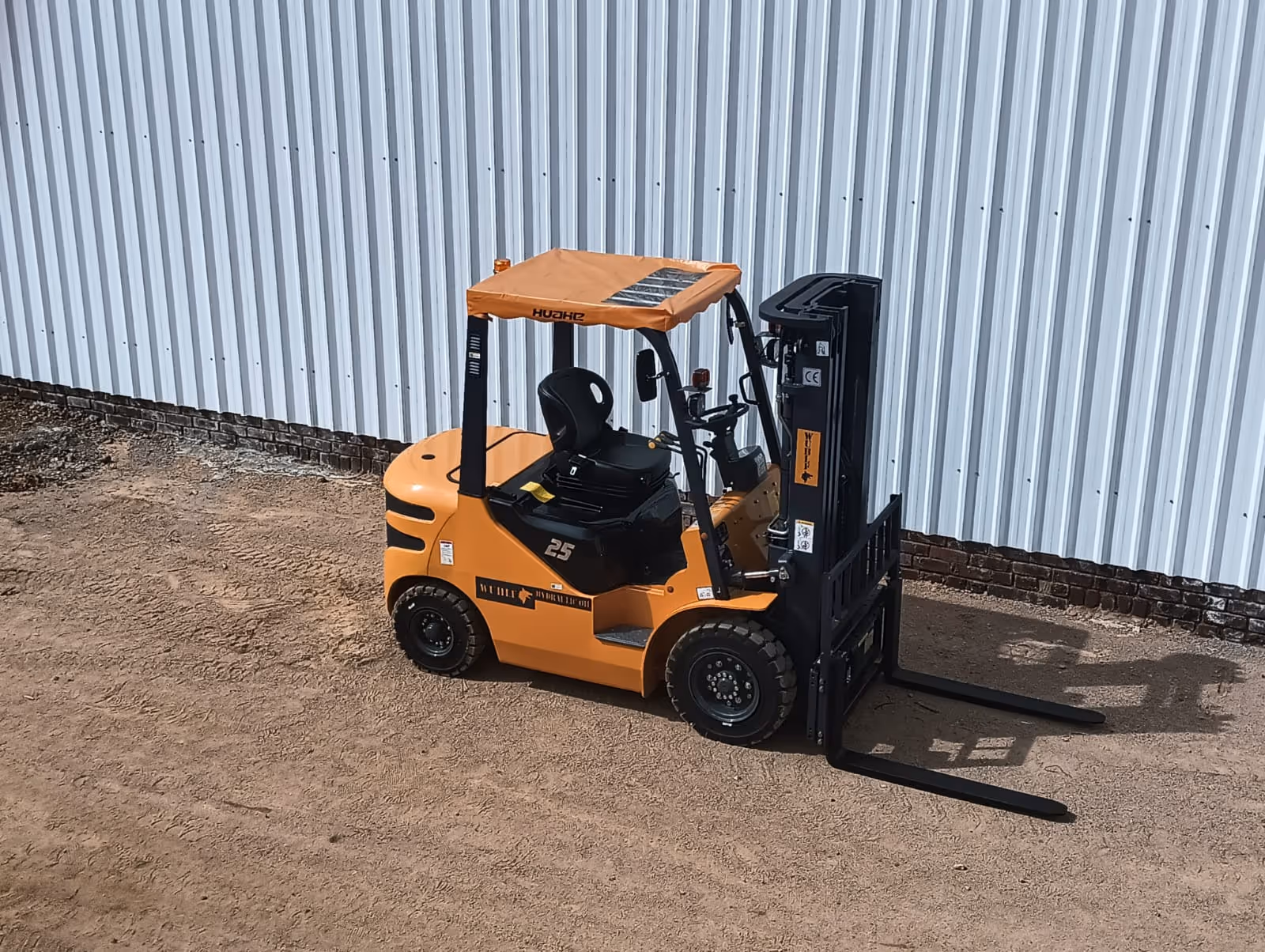

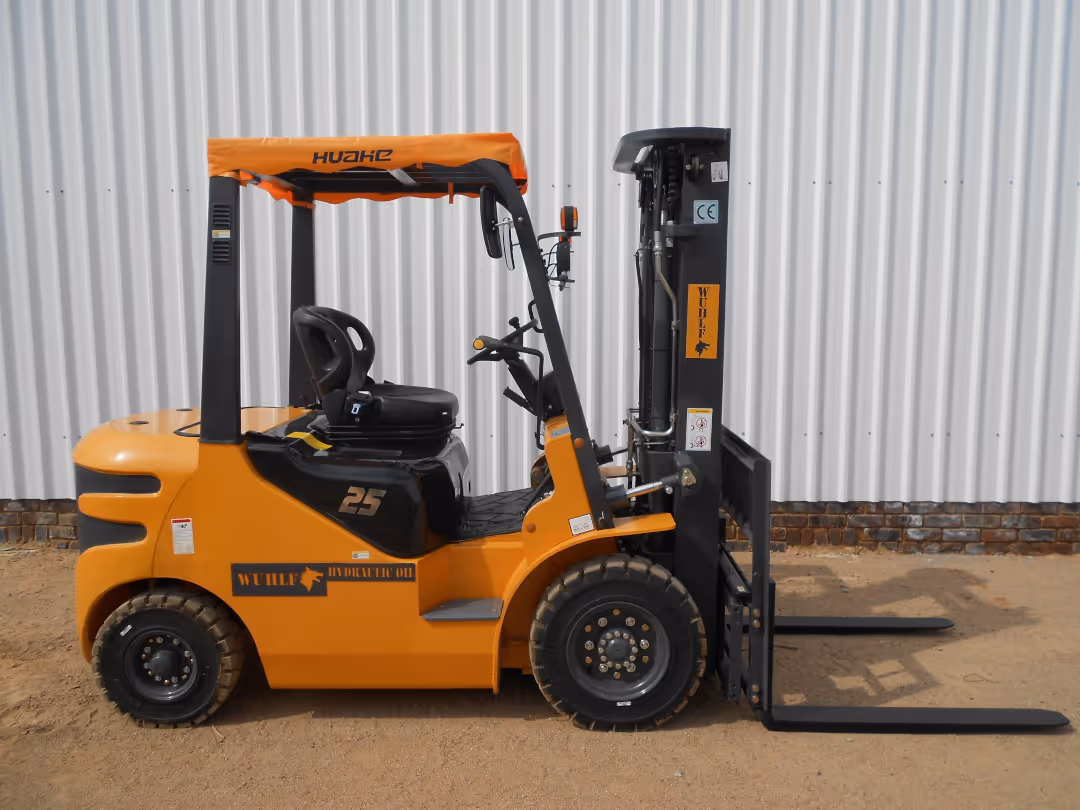

2.5T Wuhlf Forklift
2.5 Ton with 4.5 Meter Mast, Sideshift and Solid Tyres
Dimensions
Max Lifting Height
4 500mm
Free Lift Height
110mm
Fork Size L*W*T
1070x120x40mm
Free Outside Spread (Min/Max)
245/1030mm
Mast Tilt Range
6/12°
Front Overhang
480mm
Length to Face of Fork
2 610mm
Wheel Width
1 160mm
Mast Lowered Height
2 050mm

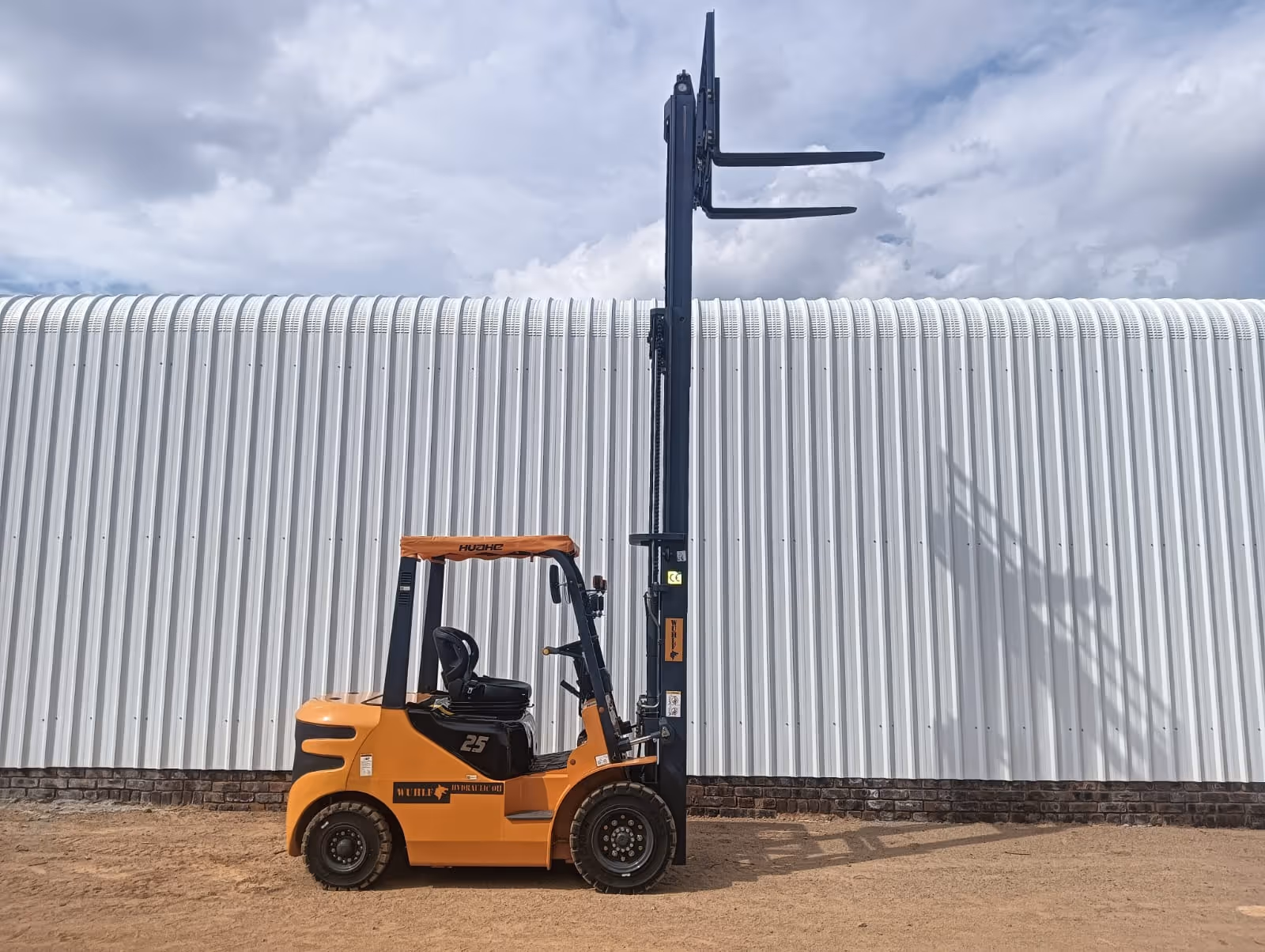

Mast Extended Height
5 500mm
Overhead Guard Height
2 150mm
Turning Radius
2 380mm
Min Right Angle Aisle Width
2 000mm
Performance
Travel Speed - Unload
20 km/h
Travel Speed - Full Load
18.5 km/h
Lift Speed - Unload
510 mm/s
Lift Speed Full Load
450 mm/s
Max Gradeability
20%
Battery
12V/90ah
Wheel & Tyres
Front Tyre Size
7.00-12-12PR
Rear Tyre Size
6.00-9-10PR
Front Tread
970mm
Rear Tread
980mm
Wheel Base
1 650mm
Min Ground Clearance - Mast Unload
160mm
Min Ground Clearance - Mast Full Load
140mm
Min Ground Clearance - Frame Unload
150mm
Min Ground Clearance - Frame Full Load
130mm

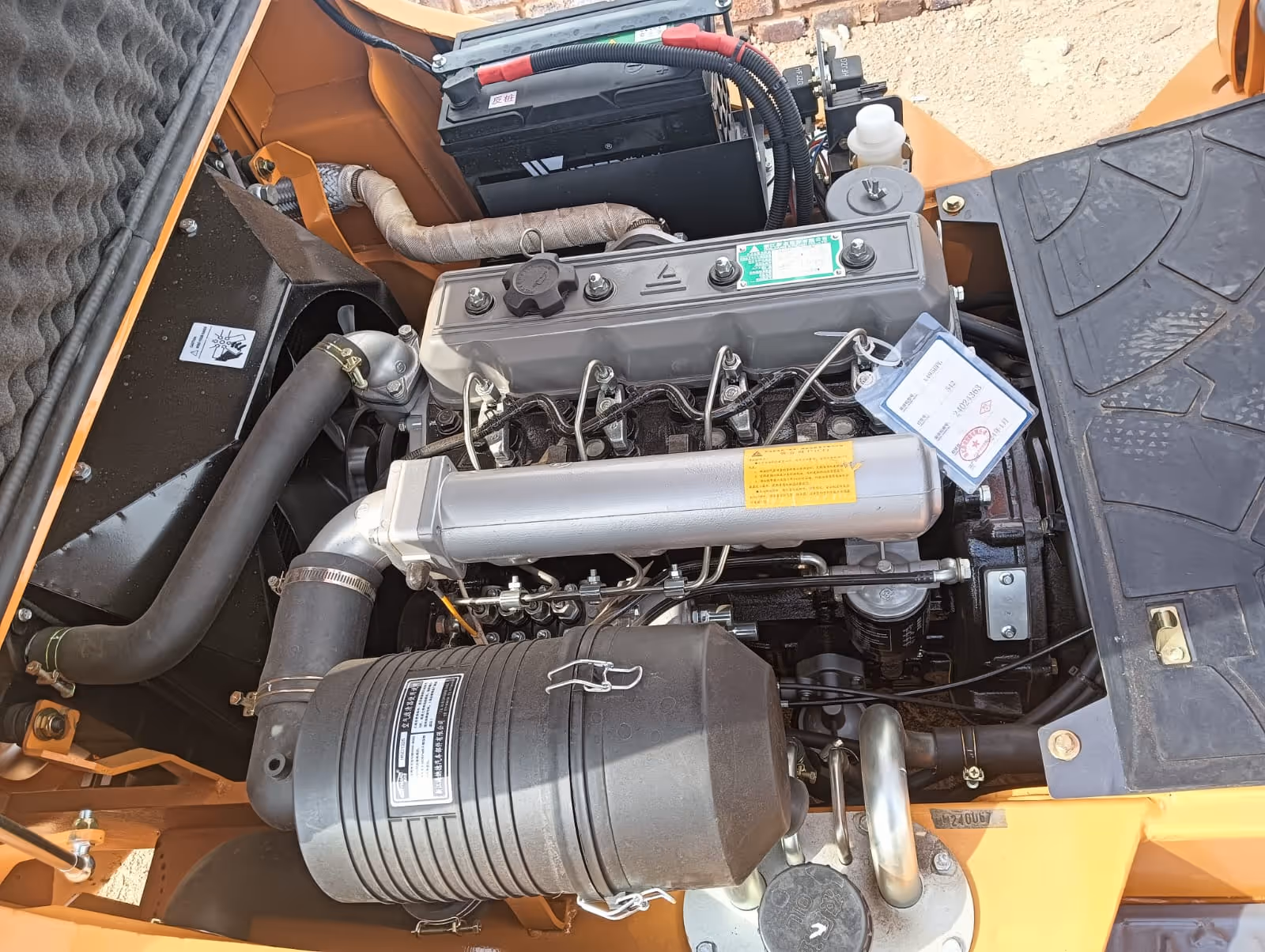

Engine
Model
A495BG-500
Rated Power
37kW
Rated Speed
2400rpm
Transmission
Type
Hydraulic
General
Rated Load
2.5 Ton
Load Centre
500mm
Power Type
Diesel
Machine Weight
4020kg
